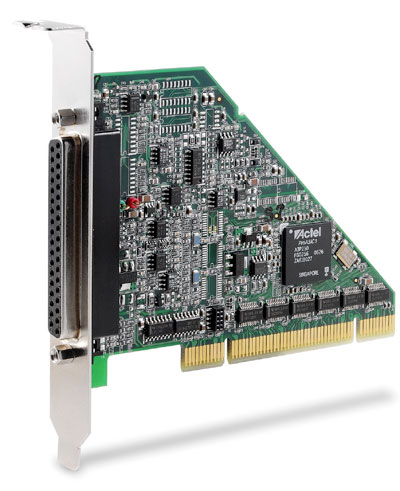

PCI-9221/9222/9223

Brand: ADLINK - Taiwan
Product code: PCI-9221, PCI-9222, PCI-9223

    • Supports a 32-Bit 3.3 V or 5 V PCI bus
    • Programmable gains for analog input: 1, 2, 4, 5, 8, 10, 20, 40 (PCI-9222/9223) 1, 5, 10, 25 (PCI-9221)
    • 2-CH 16-Bit simultaneous analog outputs, up to 1 MS/s analog output update rate (PCI-9222/9223)
    • Programmable function I/O, supporting modes:
      • TTL DI and TTL DO
      • 2 MHz High-Speed DIO (PCI-9222/9223 only)
      • General-purpose timer/counter
      • PWM outputs
      • Encoder inputs
    • Dedicated 2-CH 4 MHz encoder inputs, supporting AB phase, and CW/CCW (PCI-9222/9223)
    • Dedicated DMA channels for A/D, D/A, and high-speed DIO (PCI-9222/9223)
    • External digital trigger for A/D, D/A, and high-speed DIO (PCI-9222/9223)
    • Multiple card synchronization through SSI (System Synchronization Interface) bus (PCI-9222/9223)
    • Auto-calibration

    Specifications

    Model PCI-9221 PCI-9222 PCI-9223
    Analog Input
    Resolution 16bit
    Number of channels 16 SE/ 8 DIFF 16 SE/ 8 DIFF 32 SE/ 16 DIFF
    Maximum sampling rate (single channel) 250 kS/s 250 kS/s 500 kS/s
    Programmable gain 1, 5,10, 25 1, 2, 4, 5, 8, 10, 20, 40 1, 2, 4, 5, 8, 10, 20, 40
    Input range ±5 V, ±1 V, ±500 mV, ±200 mV ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±500 mV, ±250 mV ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±500 mV, ±250 mV
    FIFO buffer size 1 k samples
    Trigger sources Software, external digital Software, external digital, SSI
    Trigger mode Post trigger Post trigger, retrigger, gate trigger
    Input coupling DC
    Overvoltage protection ±10 V Continuous ±30 V
    Input impedance > 1 GΩ
    Data Transfer Polling, scatter-gather DMA
    Analog Output
    Number of channels 2 voltage outputs
    Resolution 16bit
    Maximum update rate 1.25 kS/s (static) 1 MHz (simultaneous update)
    FIFO – 512
    Output range ±5 V ±10V
    Output driving capacity ±5 mA
    Function I/O
    Mode Digital I/O , General Timer/Counter,Pulse Generation Digital I/O, General Timer/Counter,Pulse Generation
    Digital I/O 8 DI/4 DO (5 V TTL level) 16 DO (3.3 V TTL Level) / 16 DI (3.3 V or 5 V TTL Level)
    General Timer/Counter Two 32-Bit, Base clock: 40 MHz, external to 10 MHz Four 32-Bit, Base clock: 80 MHz, external to 10 MHz
    Pulse generation Two PWM outputs (Modulation frequency: 0.005 Hz to 5 MHz; Duty cycle: 1%-99%) Four PWM outputs (Modulation frequency: 0.01 Hz to 5 MHz; Duty cycle: 1%-99%)
    Encoder Input
    Number of channels 2
    Encoder type CW/CCW encoder, x 1 AB phase encoder, x 2 AB phase encoder, x 4 AB phase encoder
    General Specifications
    PCI Bus 5 V and 3.3 V universal PCI bus
    Auto-calibration Yes
    I/O Connector One 37-pin D-Sub connector Two 68-pin SCSI-VHDCI female
    Operation temperature 0˚C to 45˚C (32˚F to 113˚F) 0˚C to 55˚C (32˚F to 131˚F)
    Storage temperature -20˚C to 80˚C (-4˚F to 176˚F) -20˚C to 70˚C (-4˚F to 158˚F)
    Humidity 5 to 95% non-condensing
    Power requirements +5 V 1A typical,+12 V 100mA typical,-12 V 100mA typical +5 V 1.2 A typical, +12 V 760 mA typical, -12 V 50 mA typical
    Dimensions 120 mm x 87 mm (4.68″ x 3.39″) 175 mm x 107 mm (6.82″ x 4.17″)(not including connectors)
