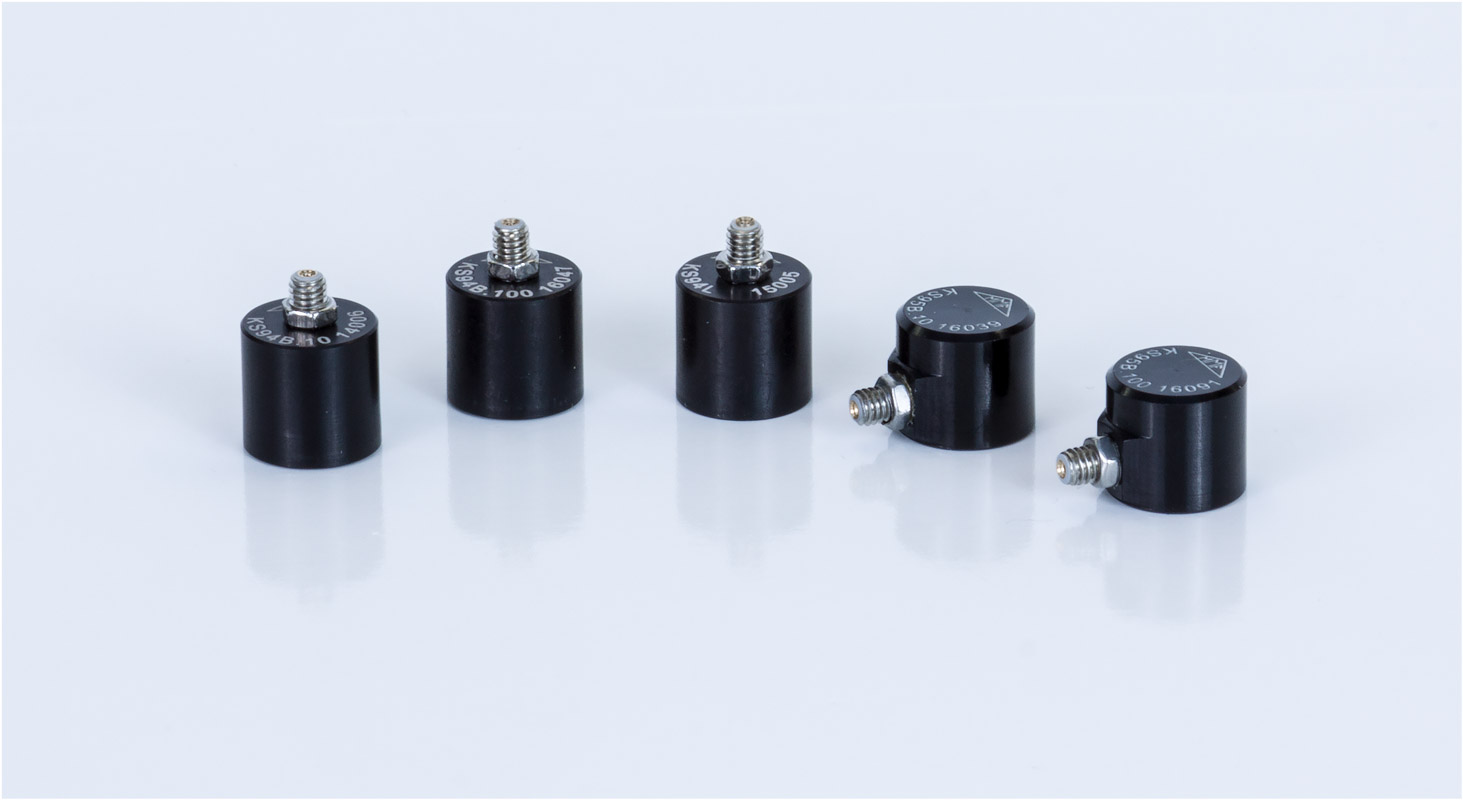

Miniature Accelerometers KS94/KS95 – MMF
Features:
- For light test objects
- With IEPE voltage output
- With sensitivities 10 mV/g and 100 mV/g
- Good resolution, also at low frequencies
- High resonant frequencies
- Replaceable cables with subminiature M3 connector
- M3 mounting thread in base
Specifications
| KS94C10 | KS94C100 | KS94L | KS95C10 | KS95C100 | |
| Output | IEPE | ||||
| Piezo design | Shear design | ||||
| Voltage sensitivity (mV/g) | 10 ± 5% | 100 ± 5% | 14 ± 20% | 10 ± 5% | 100 ± 5% |
| Range | 600 | 60 | 240 | 600 | 60 |
| Destruction limit (g) | 8000 | ||||
| Resonant frequency (kHz) | >70 (+25dB | > 40 | > 40 | >70 (+25dB | > 40 |
| Transverse sensitivity (%) | < 5 | ||||
| Weight without cable (g) | 2.4 | 3.2 | 3.5 | 2.4 | 3.2 |
| Case material | Aluminum/ Stainless steel | ||||
| Cable connection | axial | radial | |||
