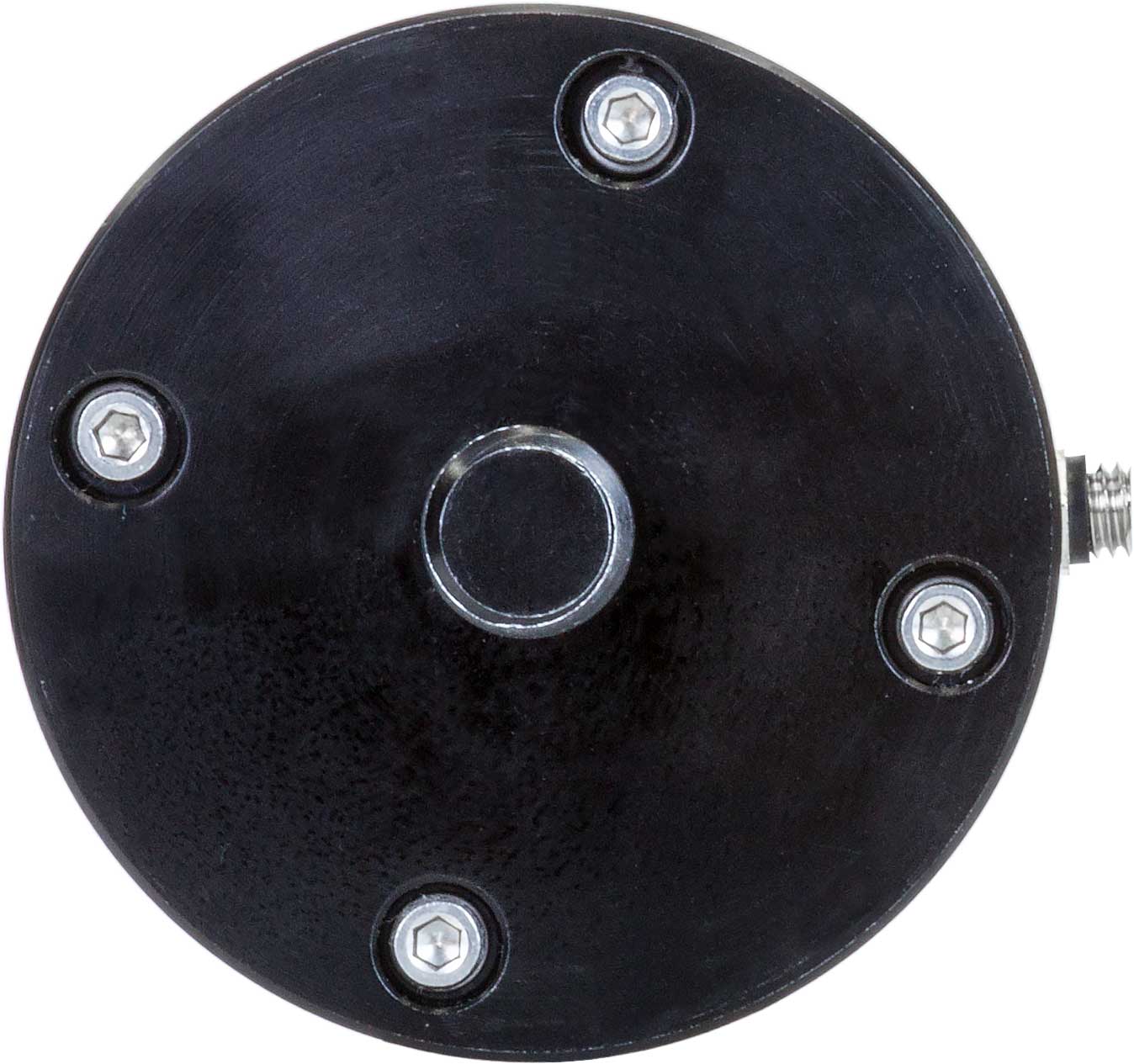

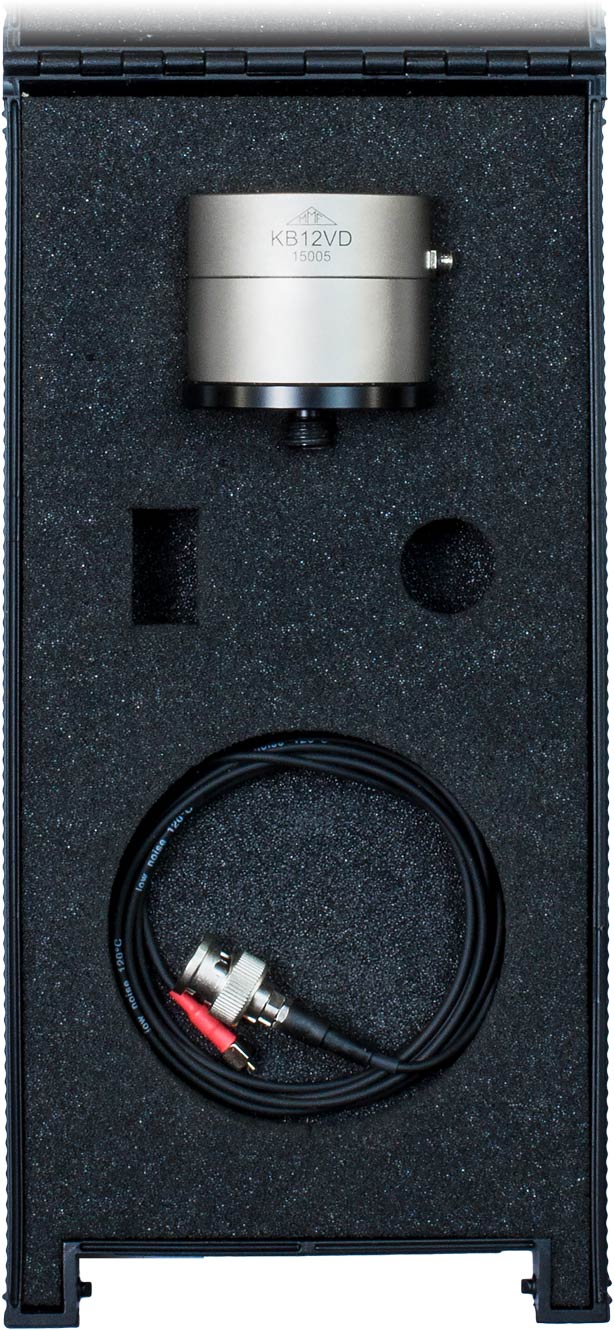

High Sensitivity Accelerometers KB12VD/KS48C – MMF
Features:
- Suited for seismic measurement and building vibration, particularly at low frequencies
- Extremely sensitive piezo system provides excellent resolution and lowest noise
- KB12VD with particularly high sensitivity-to-mass ratio
- KB12VD with air damping for resonance attenuation and overload protection by friction coupling
- KB12VD and KS48C with IEPE voltage output
- KS48C with protection grade IP67
Specifications
| KB12VD | KS48C | |
| Output | IEPE | |
| Piezo design | Bender | Shear |
| Voltage sensitivity mV/g | 10 000 ± 10 % | 1000 ± 5 % |
| Range (g) | ± 0,6 | ± 6 |
| Destruction limit (g) | 200 | 1000 |
| Resonant frequency (kHz) | > 0,35 (+15 dB) | > 7 (+25 dB) |
| Transverse sensitivity (%) | < 5 | |
| Weight without cable (g) | 150 | 165 |
| Case material | Aluminum | Stainless Steel |
| Cable connection | Radial | Axial |
| Socket | UNF10-32 | Binder 713 |
| Mouting thread | M5 / M10 | M8 |
